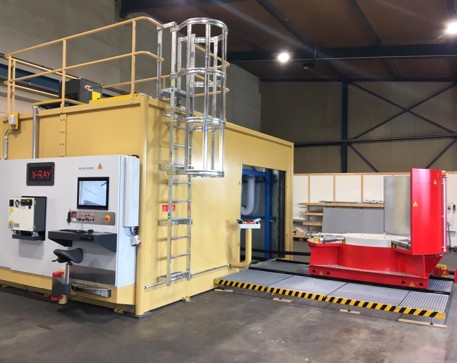

Turbine receiver rings XC05-2000-1R-450

The XC05-2000-1R-450 is especially designed for theinspection of aircraft engine parts like turbine receiver rings. Therefore, thesystem is equipped with a 450 kV X-ray source.

The motor driven cart allows easy loading and unloading bycrane or forklift outside of the

X-ray cabin -

THIS XC05-2000-1R-450 IS OUR HEAVY VERSION.

Parts Parameters

Casting part size up to Ø 2200 mm

Part height max. 1200 mm

Part weight max. 2000 kg

Max. material thickness depending on type ofmaterial

XC05-2000-1R-450 is designed for automated handlingof huge parts of aircraft engines.

The system reaches its high level of functionality whilebeing compact without any additional onsite concrete protection walls.

The combined features make XC05-2000-1R-450 a uniqueinspection system.
