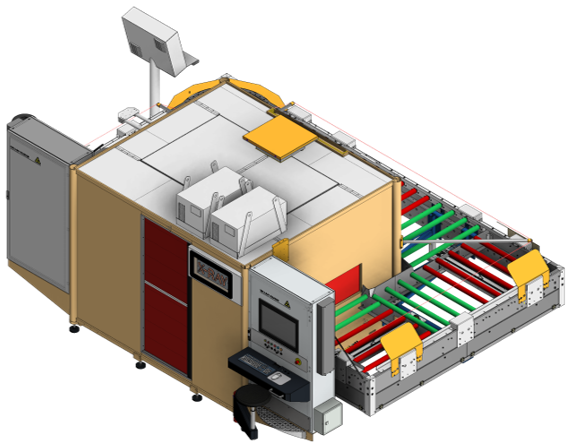

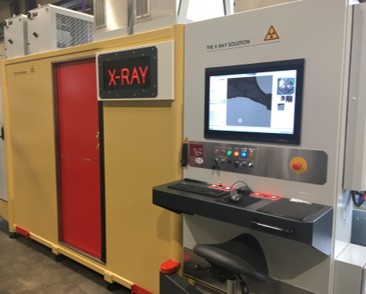

Turbine Blades XC01-1100-450

The XC01-1100-450 is especially designed for theinspection of aircraft engine parts like turbine blades. Therefore, the systemis equipped with a 450 kV X-ray source and a digital flat panel with pixel sizeof 100 micron. The carrier concept with a diameter of 1100 mm allows singlepart loading as well as multiple loading at the time.

THIS XC01-1100-450 HANDLES ALL.

Parts Parameters

Casting part size up to 1000 mm

Part height max. 350 mm

Part weight max. 120 kg

Max. material thickness 120 mm depending on type ofmaterial

XC01-1100-450 is designed for fully automated and inlineprocessed inspection of aircraft engine parts. The system reaches its highlevel of functionality while being compact with a small footprint. The combinedfeatures make XC01-1100-450 a unique inspection.
