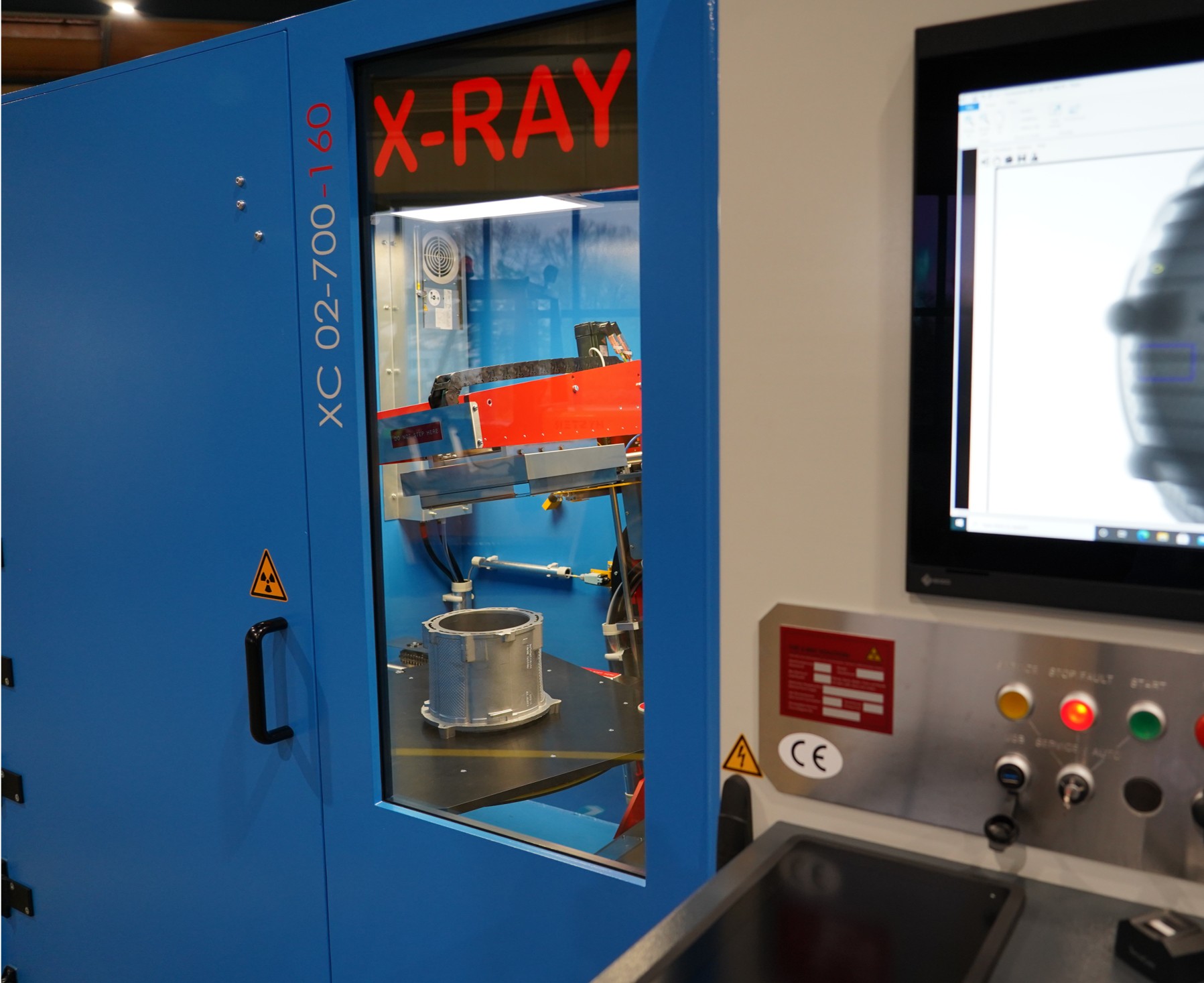

Wax molds XC02-700

The XC02-700 is especially designed for theinspection of wax molds for aircraft engine parts like turbine blades.Therefore, the system is equipped with a 160 kV X-ray source and a digital flatpanel with pixel size of 145 micron.

The carrier concept with a diameter of

700 mm allows single part loading as well as multipleloading at the time -

THIS XC02-700 HANDLES ALL.

Parts Parameters

Wax mold size up to 600 mm

Part height max. 280 mm

Part weight max. 60 kg

XC02-700 is designed for offline processed manuallyor fully automated inspection of wax mold parts.

The system reaches its high level of functionality whilebeing compact with a small footprint.

The combined features make XC02-700 a uniqueinspection system.
