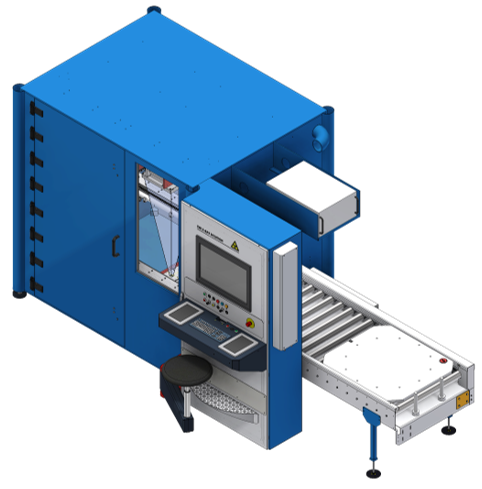

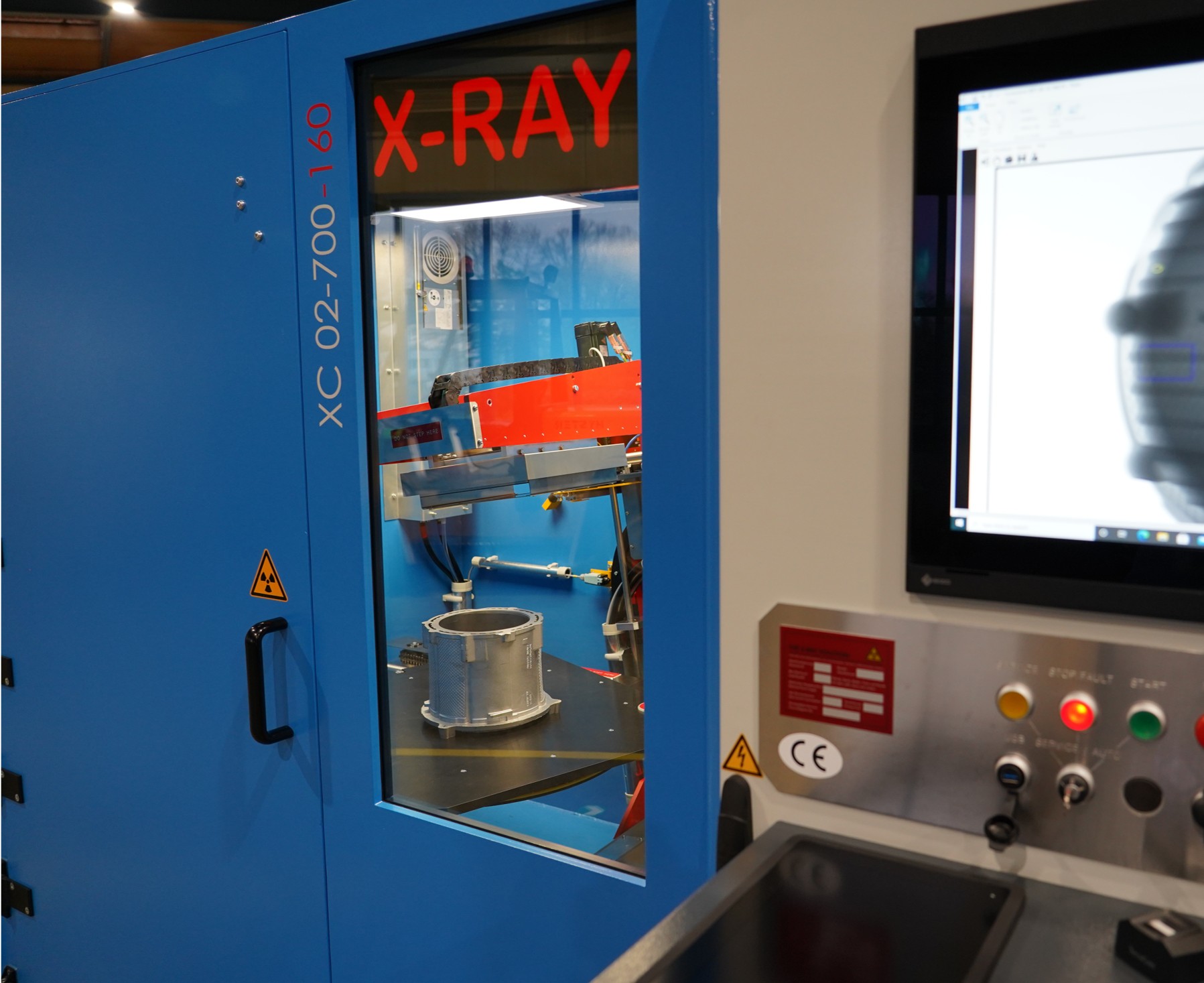

Control Arms XC02-700

The XC02-700 is equipped with a same-side In/Outroller conveyor to run product carriers in and out for inspection.

With its 160 kV X-ray source and a digital flat panel withpixel size of 145 micron it is an excellent offline system for a high diversityof casting parts.

The carrier concept with a diameter of 700 mm allows singlepart loading as well as multiple loading at the time -

THIS XC02-700 HANDLES ALL.

Parts Parameters

• Casting size up to 600 mm

• Part height max. 280 mm

• Part weight max. 60 kg

XC02-700 is designed for offline processed manuallyor fully automated inspection of of aluminium parts.

The system reaches its high level of functionality whilebeing compact with a small footprint.

The combined features make XC02-700 a uniqueinspection system.
